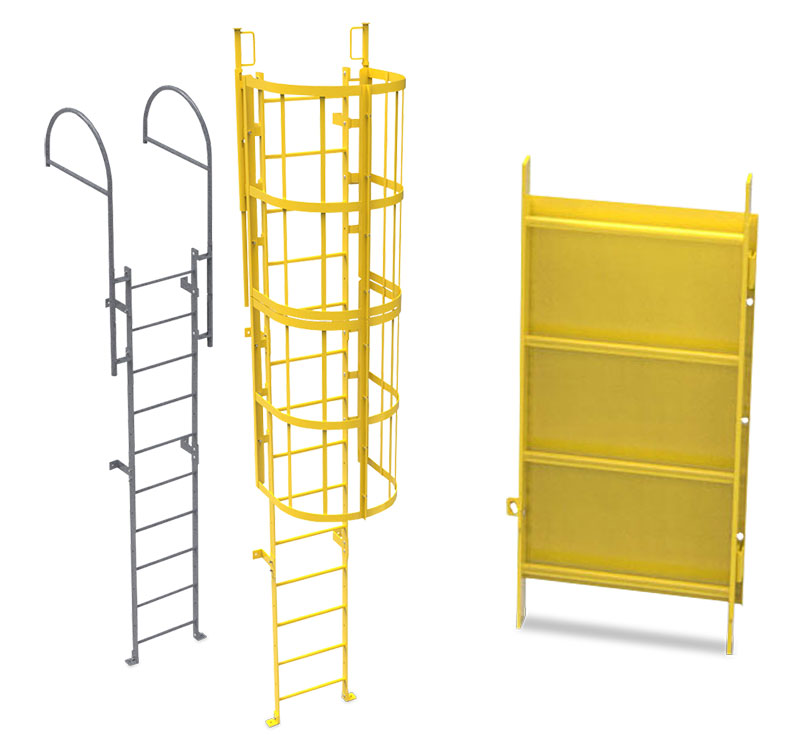

Ladders - Fixed Shaft Modular Ladder System

Description:

  • Provides safe, easy & economic access
  • Ladders Flat Packed Kit with rapid delivery
  • Modular design serving multitude of length requirements
  • Easy to store & install
  • Assembled on site, no special tools necessary
  • Non-slip Rungs ensure secure footholds & handholds
  • Standard Finish is Safety Yellow Painted, also available in Galvanized finish

Cage:

  • Material: Steel ASTM A36
  • Hoops: 2” x 1/4” Th.
  • Straps: 1” x 3/16” Th.
  • Weight: 8 Lbs/ft
  • Height: 48”

Ladder:

  • Material: Steel ASTM A36
  • Stringers: LAD-S: 2 1/2” x 5/16”
  • Rungs: LAD-S: 3/4”dia
  • Ladder Width: 20” inside
  • Length: 4’ & 5’ (special lengths available on request)
  • Weight: LAD-S: 8 Lbs/ft

Telescoping Safety Upstand:

  • Material: Steel ASTM A36
  • Extended height: 40” from top rung

Landing Guide Rail:

  • Material: Steel ASTM A36
  • Extended height: 42” from top rung

Hinged Gate:

  • Material: 12 Ga. Steel ASTM A36
  • Height: 7’

Also Available:

  • OSHA Compliant Ladder

Note:

  • All application requirements are different depending on site conditions. Acudor has provided their Ladder System in modular parts to allow a perfect fit for all uses. All components are sold separately. See a parts list and sample reference on this page.

Fixed Shaft Modular Ladder System (Parts Guide)

Sample configurations shown below are for illustrative purposes only. All components are sold separately

Dimensions
