Safety Rails

RGS Safety Rails

Features:

  • Railing system surrounds all sides of the opening
  • (Self Closing Gate) Spring tension gate keeps the opening closed after pass through
  • Easy to install
  • Assembled on site, no special tools necessary
  • Safe, easy and economic access
  • Standard Finish is Safety Yellow Painted, also available in Galvanized finish

Components:

  • Material: Steel ASTM A36
  • Rails: Steel ASTM A36
  • Joiners: Steel ASTM A36
  • Rail Width: Various lengths to fit the multiple sizes of openings
  • Weight: Standard rail lengths range from 8lbs. to 11lbs.

Compliance

  • Designs complying OSHA standards
  • Other specifications available

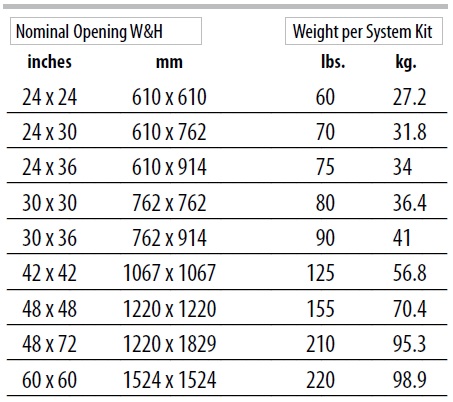

Rail System Standard Sizes

  • Click to view all sizes. Other sizes available upon request

Application

  • Safety accessibility to roof areas through the Roof Hatch opening

Product Features

  • All of these safety products are designed to be used with the Acudor Roof Hatch to allow safe use at all times

Components

  • TSP-1: Telescoping Safety Post
  • SLE-Y: Safety Ladder Extension

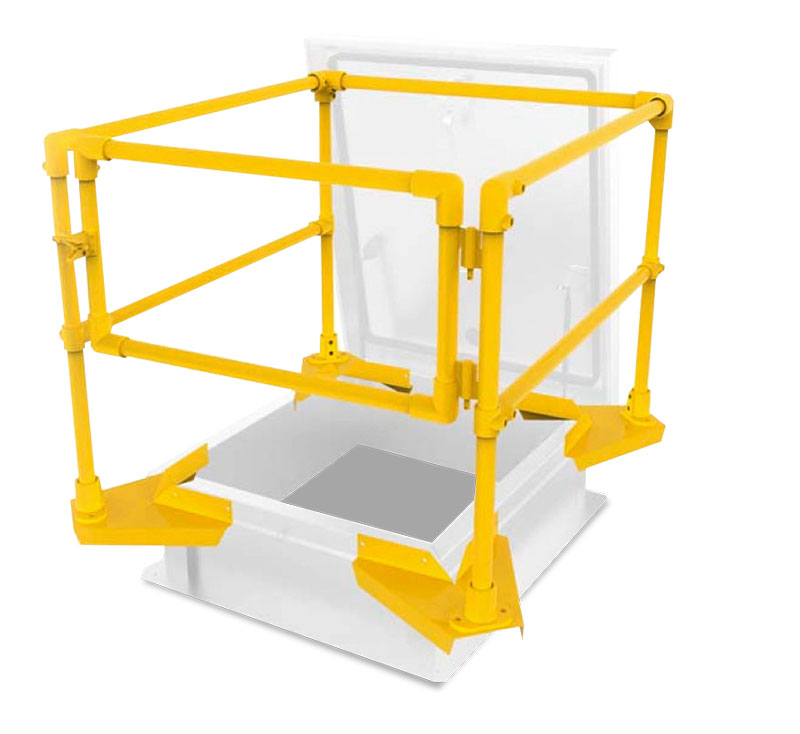

Front View - click to enlarge:
