Roof Hatches

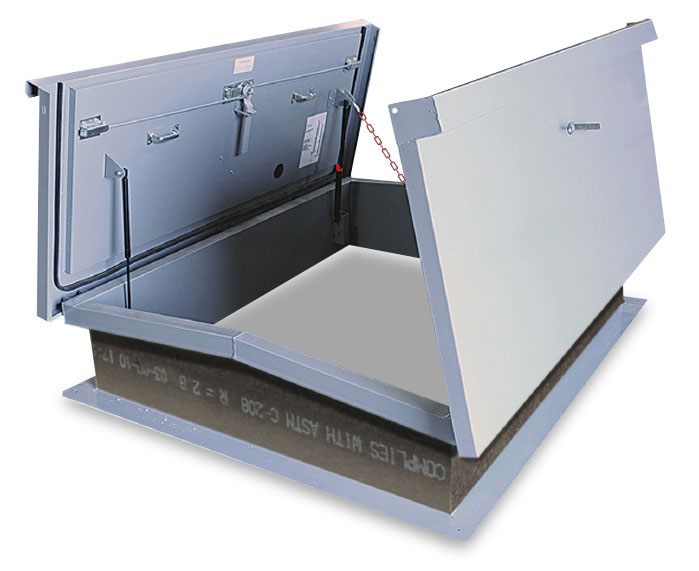

RHG Galvanized Equipment Access Roof Hatch - Double Leaf

Description:

  • Acudor Equipment Access Roof Hatches are designed to provide convenient, economical access to the roof of a building where larger openings are required. This opening allows for equipment to be installed or removed from a building through the roof.

Features RHG:

  • Weather tight construction
  • Convenient one-hand operation
  • 12" high insulated curb
  • Supports 40lbs./sq. ft. live load

Optional Features RHG:

  • Stainless Steel cover, curb, and/or hardware (RHG)
  • Galvanized steel curb and Aluminum cover
  • Polycarbonate domes for daylighting
  • Louvered Curbs
  • Curb Mounted Units
  • Curb pitch corrected for sloped roof
  • Higher curb heights for "green roof" applications
  • Higher Live Load support
  • Available with Galvanized Steel Curb and Aluminum Cover

RHG Specifications:

  • Cover: Double-skin construction (“in box type design”) with 1" cellulose insulation and a continuous EPDM foam weather/draft seal gasket that is attached to the inside of cover to provide a flush, tight fit. Designed to support a live load of 40lbs./sq. ft., the cover is 1/8" thick aluminum with a 22 gauge aluminum inside liner.
  • Curb: 14 gauge galvanized steel with 1" thick fiberboard roof insulation at curb exterior. Curb is 12" high, with 3.375" wide bottom flange and pre-drilled mounting holes.
  • Hinge: Heavy duty Aluminum pintle hinges with 3/8" pin.
  • Opening: Gas spring operators allow cover to open and close with ease. Inside pull handle allows for easy control when closing cover.
  • Door Latch: Self latching, zinc plated outside T handle 2-Point slam latch. Unit also has inside and outside padlock provisions.
  • Finish: Material is prepared with an iron phosphate wash, followed by a rust inhibiting primer, and then a baked on polyester enamel grey paint.

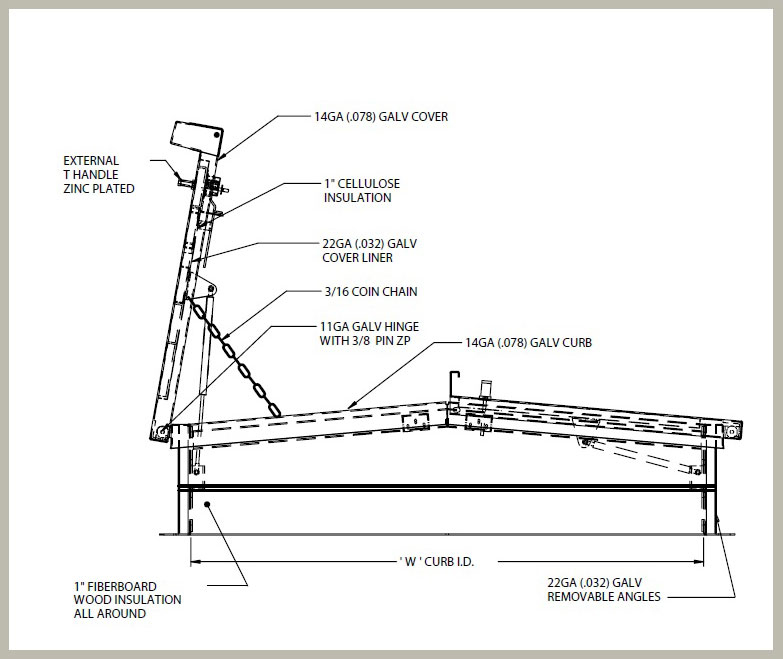

Please click on the image below to enlarge:

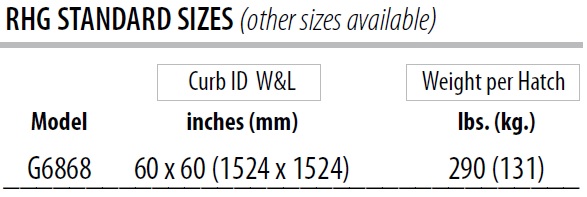

Sizes:
