Roof Hatches

RHA

Description:

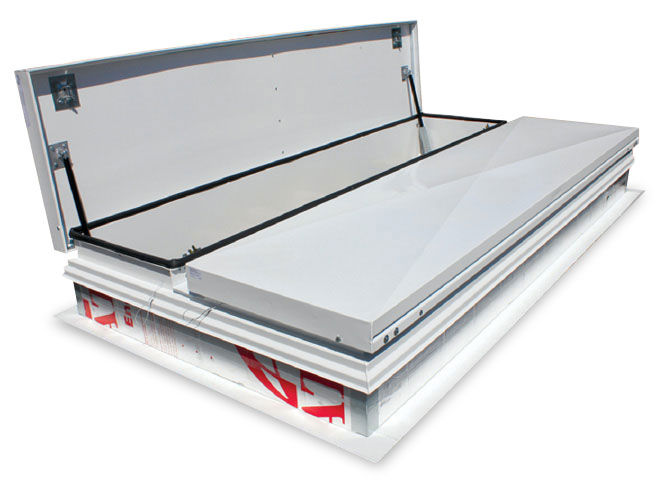

  • Acudor Smoke Vents are designed to provide an economical solution for fire ventilation by removing deadly smoke, heat, and gases from a burning building.

Features SVA:

  • 14 gauge G90 Galvanized Steel
  • 12" high insulated curb
  • UL Listed Fusible or McCabe Resettable Links
  • Inside and Outside manual release
  • High performance gas springs

Optional Features SVA:

  • Curb mount or Metal Building Flange
  • Double-Dome Polycarbonate lids for daylighting
  • Louvered curb for ventilation

SVA Specifications:

  • Cover: Double-skin construction (“in box type design”) with 1" cellulose insulation and a continuous EPDM foam weather/draft seal gasket that is attached to the inside of cover to provide a flush, tight fit. Designed to support a live load of 40lbs./sq. ft., the cover is 14 gauge galvanized steel with a 22 gauge galvanized steel inside liner.
  • Curb: 14 gauge galvanized steel with 1" thick fiberboard roof insulation at curb exterior. Curb is 12" high, with 3.375" wide bottom flange and pre-drilled mounting holes.
  • Hinge: Heavy duty galvanized steel / aluminum pintle hinges with 3/8" pin.
  • Opening: Gas spring operators allow cover to open and close with ease. Inside and outside release allows for manual lid operation.
  • Door Latch: Self latching Slam Latch. Supplied standard with 165° UL Listed Fusible Link. Resettable McCabe link available.
  • Finish: Galvanized Steel: baked on polyester enamel paint.

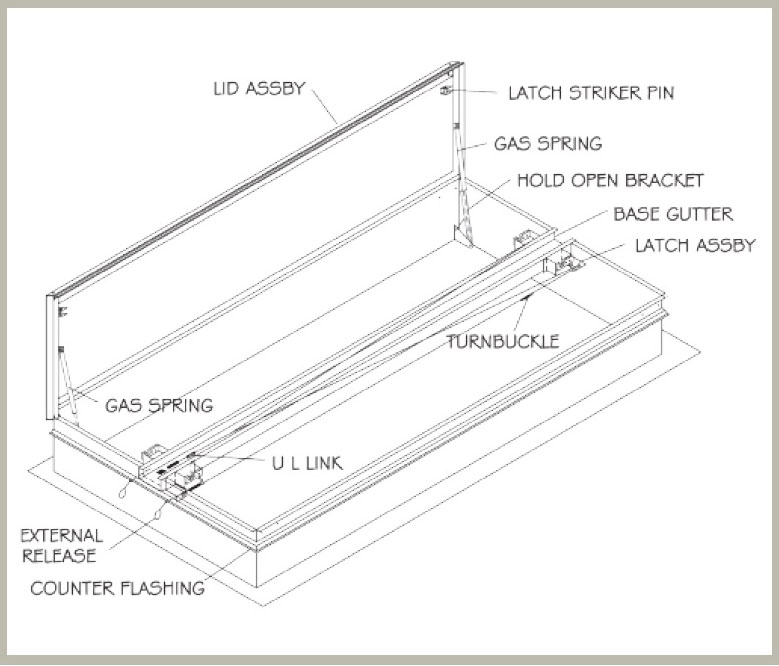

Please click on the image below to enlarge:

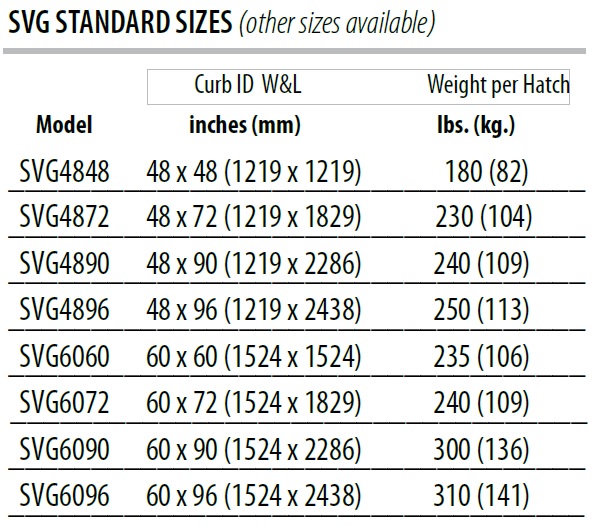

Sizes:
